Load Sensors Australia offers a wide range of Industrial Weighing Kits with
load cells engineered for precision and reliability. Emphasizing high
manufacturing standards and efficient sealing methods for enhanced durability
and long life, our industrial Weighing Kit product line includes:
Build your own scale with our complete kit, including a stainless
steel display, load cells, and more.
Easy-to-install kits for wool presses, available in capacities from
500kg to 2000kg.
Durable kits for weighing tanks, silos, and hoppers, featuring
stainless steel components and high capacity options up to 40,000kg.
Includes an S-type load cell and weight indicator for precise
measurements.
Simplifies installation under existing structures for accurate
weighing.
Low profile load cell ideal for caravan and vehicle wheel weighing,
with a capacity of 1500kg and high accuracy.

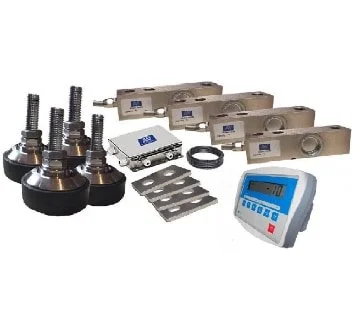

This AWSB Floor / Livestock scale kit is ideal for creating platforms with 4 load cells of various sizes and capacities.
The kit is made up of 4 X 350 ohm IP67 electroless Nickel plated load cells, together with adjustable swivel foot, load cell spacer plates, cable,
Stainless steel junction box and a weight indicator in ABS Body with animal weighing feature.
Kits are available from 500kg*0.2kg to 12000kg*5kg in 5 capacities.

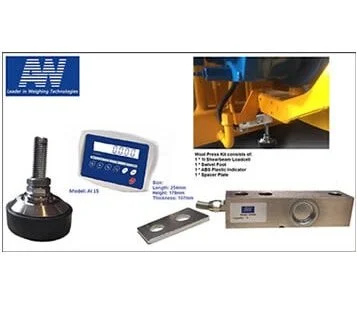

The AWP Wool press kit is an economical weighing kit for your wool press.
Our kits are suitable for weighing from 500kg*0.2kg to 2500kg *2kg , in four capacities.
The kits will be sent as a precalibrated set, based on one load cell is fitted to one of the feet (support) of the wool press. An
onsite calibration, which can be easily done with a known weight, is recommended to compensate for the weight distribution among the three supports.

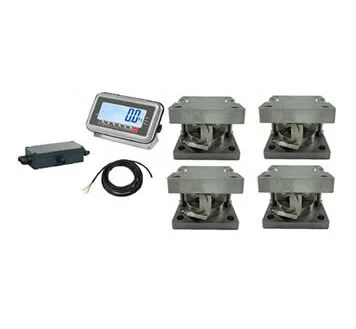

The AFT11 load cell is a Stainless steel Cross shear beam load cell sealed to IP67, capable of taking
side loads.
With this AFT kit, it is possible to quickly install AF11 load cells, for weighing of silos, tanks, or different kinds of structures. Made in Stainless steel and extremely simple to clean, AFT11 is ideal for weighing in environments which are hostile, or that have high hygiene requirements.

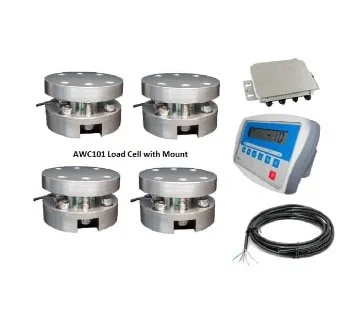

The AWC101WA load cell Assembly is a stainless steel pancake load cell assembly and the load cell is sealed to IP67.
Built in stainless steel and extremely simple to clean, AWC101WA is ideal for weighing in environments which are hostile,
or that have high hygiene requirements. The AWC101WA weighing assembly has inbuilt uplift protection and is made of fully stainless steel.

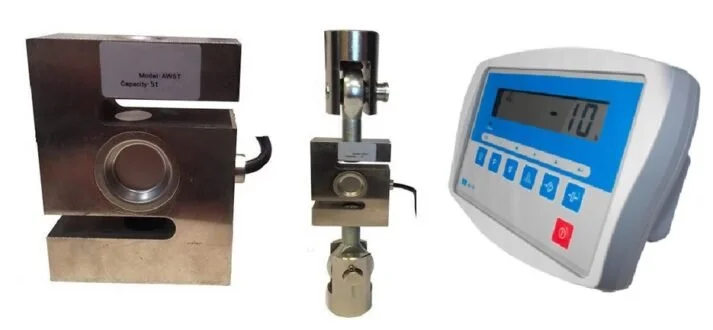

This AWST crane scale kit consists of an S-Type Load cell with two rod end bearings, two brackets and weight Indicator, ideal for
load and force measurement. This kit is available in six capacities from 250kg to 5000kg.
This kit can be used for your tension (pull) tests. The load cell can work in tension and compression. If your tests are in compres
sion, we can configure the indicator for compression tests by setting the signal wires suitable compression (push) tests. So if you
are testing the strength of a rope in tension or a concrete block in compression, this kit is an economical weighing solution.

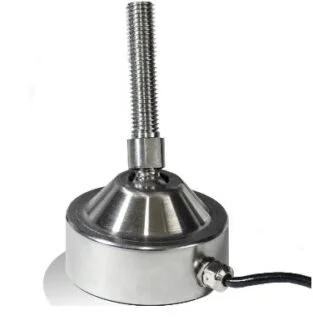

The swivel foot load cell is designed to install directly under the existing support structure of a floor scale, packing machine, silo, hopper, bin or other vessels, enabling the contents to be weighed.
AWSF eliminates the complex installation process.
This kit is low profile load cell with just 55mm height with a weighing length of 230mm , with a weighing indicator.
The load cell base has two mounting holes. The load cell top plate has M12 threaded holes.
So if you want to install the load cell on a foundation plate or want to fit a bigger plate on top of load cell, the provisions are already on this load cell.
