The OWL12 Kit is a comprehensive weighing solution designed for chaser bins and other mobile weighing applications.

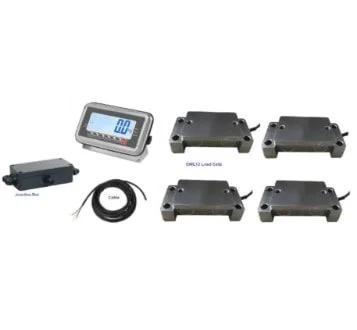

This kit has 4 x OWL12 load cells available in 2t, 3t or 5t with junction box, cable and weight insicator. The load cell has holes on the base and threaded holes on the top to fix the bin / tray.
Key features include:
1. Components:
– 4 OWL12 load cells (2t, 3t, or 5t capacity options)
– Stainless steel junction box
– 10m cable
– Weight indicator with ABS plastic casing
2. Indicator Specifications:
– Internal rechargeable battery
– 12V DC operation
– 230V AC/12V power adapter included
– Compatible with vehicle’s 12V DC battery
3. Load Cell Features:
– Stainless steel double-ended shear beam design
– IP67 rated for environmental protection
– Suitable for side and angular loading
4. Versatility:
– Adaptable for 6 or 8 load cell configurations
– Usable in standard weighing installations
– Suitable for tanks, silos, or hoppers
5. Options:
– Stainless steel or wireless indicators available
This kit offers a robust and flexible solution for mobile weighing needs, combining durability with precise measurement capabilities for various agricultural and industrial applications.
