Load Sensors Australia offers a diverse selection of high-precision load cells engineered to meet the most stringent industry standards. Designed for reliability and accuracy, our load cells utilize advanced manufacturing techniques and efficient sealing methods to ensure long-lasting performance in various applications.

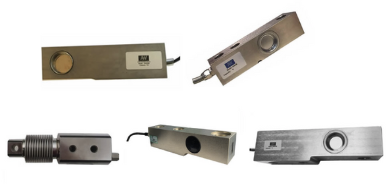

Shear beam load cells, ideal for medium to high loads, measure shear strain on a beam, offering high accuracy and stability in applications that resist lateral forces. Their design, featuring a thin vertical I-beam cross-section and strain gauges on the side surfaces, ensures precise load measurement while withstanding external forces.
The AWSSB is a versatile stainless steel shear beam load cell designed for precision in various weighing applications.
The load cell is sealed to IP68 protection with welded sealing.
Capacities (t): 0.5, 1, 1.5, 2t, 2.5t, 5t and 10t
The AWSB is a high-precision shear beam load cell engineered for diverse industrial weighing applications.
Capacities: 250, 500, 1000, 1500, 2000, 2500, 5000, 10000kg
The AW8708 is a specialized 7t capacity shear beam load cell, offering precise measurement with a 1.75mV/V output signal.
The ASB1 is a versatile shear beam load cell engineered for precision in various industrial weighing applications.
Key features include:
AWS203 is a hermetically sealed Tool steel load cell.
Capacities: 125, 250 and 500kg
Welded sealing by bellows, ideal for food industry and other washdown applications.
S-type load cells, ideal for tension and compression applications, measure force through deformation at both ends, offering high accuracy for small to medium loads. Their design, named for their shape, includes strain gauges at deflection points to detect changes, ensuring precise weight or force measurements. Available in aluminum, alloy steel, and stainless steel, they are used in various applications such as hanging scales, cranes, and dynamometer testing machines, with various capacitiy ranges.
AWS40 is a precise and reliable Stainless steel load cells with welded sealing. This ‘S’ beam load cell can be used in tension and compression applications. This load cell is sealed to IP68 Protection Class.
Capacities: 50kg, 100kg, 200kg, 1t, 2t, 3t and 5t
The AWST is a high-accuracy S-beam load cell engineered for both tension and compression applications. This versatile sensor offers precise measurements in various industrial scenarios.
Capacities: 1.2t, 2t, 3t and 5t
AWSTL load cells are low capacity S-beam load cells, available in a range of capacities from 100kg to 1000kg. This load cell designed for both tension and compression (pull and push) applications, offering flexibility in various measurement scenarios.
Capacities: 100kg, 250kg, 500kg & 1000kg
AWSL is a low capacity S-beam load cell available in 2kg and 5kg. The ‘S’ type beam load cells are normally used in tension applications.
AWLP load pins offer precision force measurement in a robust stainless steel package. These versatile sensors are designed to integrate seamlessly with standard shackle sizes from 3t to 55t capacities.
3t, 5t, 10t, 25t and 55t load pins are available with accessories and reader (weight indicator).
The AWS40 (HT) is the high temperature version of our AWS40 load cell, engineered for high temperature environments. This precision instrument works in both tension and compression applications, making it versatile for various industrial needs.
Capacity: 50kg to 5000kg (7 capacities)
Operating temperature up to 70 Degree C
Disc load cells, also known as canister or compression load cells, are used to measure compression loads with high accuracy. Designed to measure compression along a single axis, they are made from stainless steel and feature four strain gauges arranged in a Wheatstone bridge formation. Highly resistant to bending and external forces, disc load cells are easier to mount and are ideal for applications requiring precise compression measurements and robust performance. Common uses include silo, hopper and tank weighing, material testing & industrial automation.
The AWC101 is a versatile compression disc load cell designed for precise static force measurement in industrial applications.
Key features include:
1. Capacity Range:
Eight capacities: 50kg, 100kg, 200kg, 500kg, 1t, 2t, 5t, and 10t
2. Compact Design:
– Miniature pancake shape
– Height: 25mm, ultra low profile
– Diameter: 50mm (across all capacities)

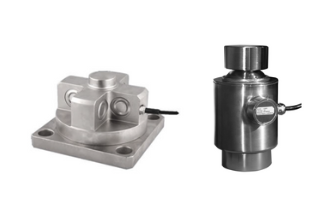

Weighbridge load cells, also known as truck scale load cells, are essential for high-capacity weight measurement in truck and rail scales. These robust load cells, typically made from stainless steel or alloy steel, are designed to withstand heavy loads and harsh conditions. Positioned directly below the weighing platform, they compress under load, producing an analog signal proportional to the applied force. Featuring multiple strain gauges in a Wheatstone bridge configuration, they ensure accurate and reliable measurements. Resistant to lateral forces, weighbridge load cells provide stable, long-term performance, making them ideal for logistics, transportation, and industrial applications requiring precise vehicle weight measurements. Easy to install and maintain, they are crucial for efficient and accurate weight management.
The AF11 is a premium cross beam load cell engineered specifically for heavy-duty weighing applications.
This load cell is ideal for weighbridges, tanks, silos and hoppers. This load cell is available in capacities of 10, 20,30 and 40t.
The load cell body is stainless steel with IP68 ingress protection.
The LS201 is a high-precision compression load cell engineered for demanding weighbridge and silo/tank applications.
Capacities: 5t, 10t, 20t, 30t, 40t and 50t
Rocking Pendulum design with load button.

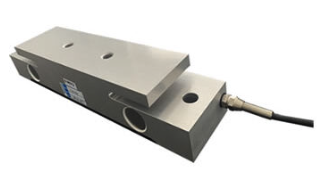

Onboard weighing load cells provide real-time payload information, essential for preventing overloading and carry-back, reducing fuel consumption, machine wear, and increasing productivity. Integrated into vehicles like trucks and agricultural machinery, they offer continuous weight monitoring. Made from durable materials like stainless steel or alloy steel, these load cells feature strain gauges in a Wheatstone bridge configuration for precise measurements. Designed to withstand dynamic forces and harsh environments, they resist shock and vibration. Ideal for logistics, construction, and agriculture, onboard weighing load cells enhance safety and operational efficiency, ensuring accurate weight management on the move. Easy installation and maintenance make them indispensable for effective load management.
Capacity Options:
Available in 10000kg (10t) and 15000kg (15t)
Tool steel construction (plated) , double ended shear beam design
The OWL11 is a specialized load cell designed for precision weighing in on board applications like sheep feeders.
Key features include:
1. Construction:- Tool steel (plated) double-ended shear beam design with IP67 class sealing for ingress protection
2. Capacities:-0.25, 0.5, 1, 1.5, and 2 tonne capacities
TS910 is a bolt on sensor/ Load cell . This load cell can sense the deflection of the structure on which the TS910 sensor is bolted.

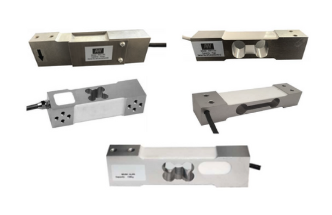

A single point load cell, also known as a platform or parallel beam load cell, is a transducer that converts force or weight into an electrical signal. Known for accuracy and reliability, they can accept off-center loads, making them ideal for small to medium loads up to 2 tons. Commonly used in pricing, counting, platform, kitchen, conveyor, hopper, and dosing scales, single point load cells change output voltage when a load is applied, altering resistance.
The AW1140 is a high-precision stainless steel single point load cell designed for demanding industrial applications.
Capacities: 10, 15, 20, 30, 50 and 100 kg
Suitable for 400mm*400mm platform
The AW1130 is a high-precision stainless steel single point load cell designed for reliable performance in challenging environments.
Capacities: 7, 10, 15, 20, 30, 40, 50 kg
Suitable for 350mm*250mm platform
The AWSP91 is a high-precision single point Aluminium load cell designed for versatile weighing applications.
Capacities: 50, 100, 150, 200, 250, 300, 350, 500 kg
Suitable for up to 400mm*400mm platform size
The AWSP1 is a versatile single point Aluminium load cell designed for retail and benchtop scales.
Capacities: 3, 5, 6, 10, 15, 20, 30, 35, 40, 50 kg
Suitable for 350mm*250mm pan size, a popular model for bench top scales
The AL6N is a precision-engineered aluminum single point load cell designed for versatile weighing applications.
Capacities: 30, 50 and 100kg
Suitable for 400mm*400mm platform size
Load pins are a type of load cell that connect force-transmitting machine elements and measure the force acting on the sensor. Often used in overhead equipment like cranes and lifts, they can be integrated into existing systems without new construction. Made of stainless steel for strength and corrosion resistance, load pins contain a bored center with strain gauges that convert force into an electrical signal. Capable of measuring both static and dynamic forces, they provide accurate readings even in extreme environments. Load pins can replace bolts, clevis, sheave, and equalizer pins, consistently monitoring vertical or horizontal tension.
AWLP shackle weigher kit comprises of a load pin with matching scakle , bobbin (sleeve), anti-rotation plate and digital reader.
The AWLP load pins, also known as shackle load pins, are specialized force measurement devices designed for critical lifting and tension weighing applications. Key features include:
1. Versatile Capacity Range:
Available in 3t, 5t, 10t, 25t, and 55t options
Tank, silo, and hopper weighing systems utilize load cells to provide accurate and reliable weight measurements for stored materials. Typically using compression load cells mounted at the base of the storage vessel, these systems are ideal for inventory management and process control, these weighing systems are widely used in agriculture, food processing, and manufacturing industries. They enable continuous weight monitoring, optimizing material usage and ensuring consistent product quality. Easy to install and maintain, our tank, silo, and hopper weighing systems enhance operational efficiency by providing real-time data on material levels and flow rates.
The AWC101WA is a stainless steel weighing kit designed for precise and reliable measurement of tanks, silos, and hoppers.
This robust system combines high-quality components with practical features to address the unique challenges of industrial weighing applications.
The mount has uplift protection, integrated with our popular AWC101 load cells
Capacities: 0.25, 0.5, 1, 2, 5 and 10t
The AFT11 is a comprehensive stainless steel load cell assembly specifically designed for precise and reliable weighing of high capacity tanks, silos, and hoppers.
Capacities: 10t, 15t, 20t ,30t and 40t assemblies.
The mounts are having uplift protection.
50t, 70t and 100t load cell assembly can also be supplied.
LS201 load cell is a compression load cell. This load cell is with stainless steel construction with IP68 welded sealing.
Ideal for weighbridges, tanks, silos and hoppers.
Capacities: 5t, 10t, 20t, 30t,40t and 50t
TS910 is a low accuracy load sensor (0.5% to 1% accuracy)which can be bolted on the legs of a structure easily.
TS910 sensor is a bolt on sensor, primarily used for level monitoring of tanks, hoppers, silos etc
This TS910 can be bolted on a structural member to sense its deflection to get the weight reading.
Caravan load cells measure load and balance in caravans and trailers, ensuring safe and optimal weight distribution. Installed at key points like the hitch, axles, or support jacks, they convert applied force into electrical signals for accurate measurement. Made from durable materials like stainless steel or aluminum, these load cells are robust and resistant to harsh conditions. Featuring strain gauges in a Wheatstone bridge configuration, they provide precise readings. Caravan load cells help prevent overloading, enhance towing stability, and improve safety by offering real-time weight and balance data. Easy to install and maintain, they are essential for caravan owners and manufacturers.
CLC1500 Caravan Load Cell is used for Vehicle Wheel weighing, Caravan weighing and Campervan weighing.
