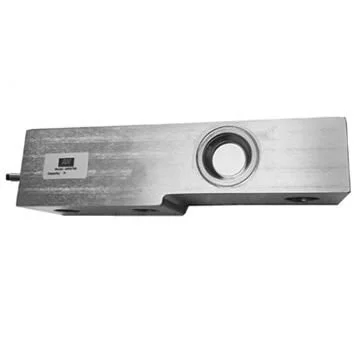

Shear Beam – AW8708 7t

The AW8708 is a specialized 7t capacity shear beam load cell, offering precise measurement with a 1.75mV/V output signal.

The AW8708 is a specialized 7t capacity shear beam load cell, offering precise measurement with a 1.75mV/V output signal.

Key features include:

  1. Construction:
    • Tool steel with electroless Nickel plating
    • IP67 sealing for environmental protection
  2. Versatility:
    • Direct replacement for popular 7t, 1.75mV/V load cells
    • Suitable for bagging scales, platform scales, hopper scales, and various weighing applications
  3. Performance:
    • Rated Output: 1.75 ± 0.01 mV/V
    • Zero Balance: ±1% mV/V
    • Non-Linearity: 0.025% RO
    • Hysteresis: < 0.010% RO
  4. User-Friendly:
    • Economical solution
    • Easy field installation
    • Compatible with accessories: digital readout, swivel foot, mounting plates



The AW8708 shear beam combines accuracy, durability, and ease of use, making it an ideal choice for 7t capacity industrial weighing needs.
